Will fit the Ditch Witch* 250SX, 350SX, 3700, 400SX, 410SX, H331 Plow, H450, and RT-40
PULL BLADES
All pull blades feature a solid shaft bullet in your choice of diameter: 1 ½”, 2”, 2 ½”
(Larger, optional sizes available upon request)
- Blade shank thickness is available in ¼”, 3/8”, 1/2”and 5/8”
- Standard depths are 8”, 12”, 18”, 24” and 30”, others available upon request
- Options: sod cutter, slanty bullet, ears only-no bullet, combo blade, and adjustable/adaptor.
CHUTED BLADES
Blade shank thickness is ½” on speed style and 5/8” on all others.
All standard blades feature a closed bottom unless you specify open or partially open bottom.
BUG WIRE OR DROP BLADES
- Standard inside chutes – ½”, 5/8”, ¾” and 1”
- Standard radius is 2.5” and 4.5”
- Standard cover depths are 12”, 18” and 24”
STANDARD PULL BLADES
- Standard inside chutes – 5/8”, ¾”, 1”, 1 ¼”, 1 ½”, 1 ¾” and 2”
- Standard radius is 7.5”
- Standard cover depths are 12”, 18”, and 24”
LARGER RADIUS PLOW BLADES-cable TV, fiber optics, etc.
- Standard inside chutes – ¾”, 1”, 1 ¼”, 1 ½”, 1 ¾”, 2”and 2 ½”
- Standard radius is 10”, 12.5” and 15”
- Standard cover depths are 12”, 18” and 24”
GAS BLADES – for plastic gas pipe, w/wire and ribbon tubes
- Standard inside chutes – 1”, 1 ¼”, 1 ½”, 1 ¾”, 2”, and 2 ½”
- Special gas radius
- Standard cover depths are 18” and 24”

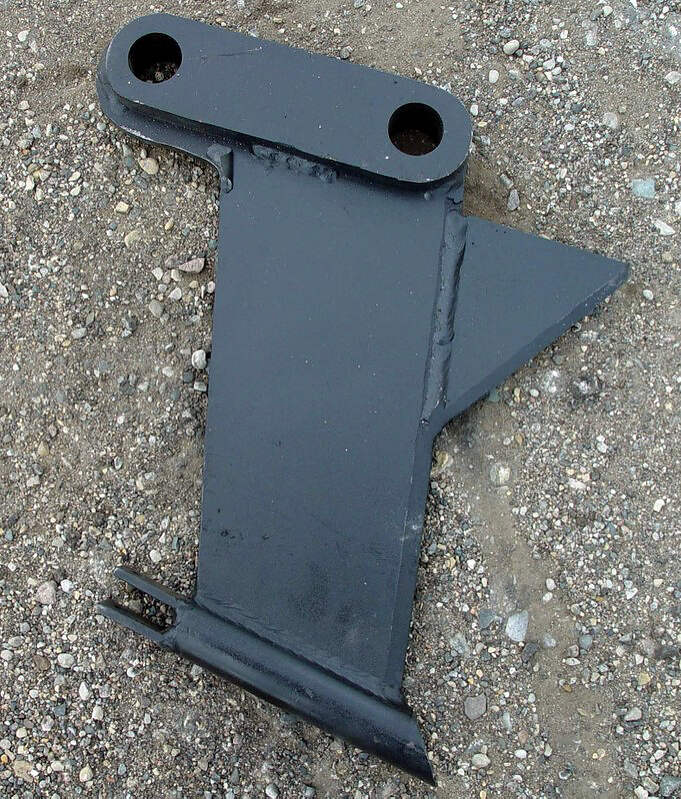

Old Style 350 blade Shown with slanty bullet Shown with optional sod cutter

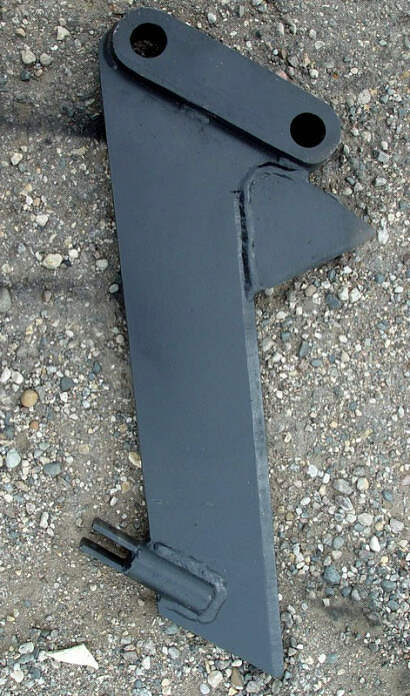

New Style 350 blade Shown with standard cut-in bullet Shown with optional sod cutter

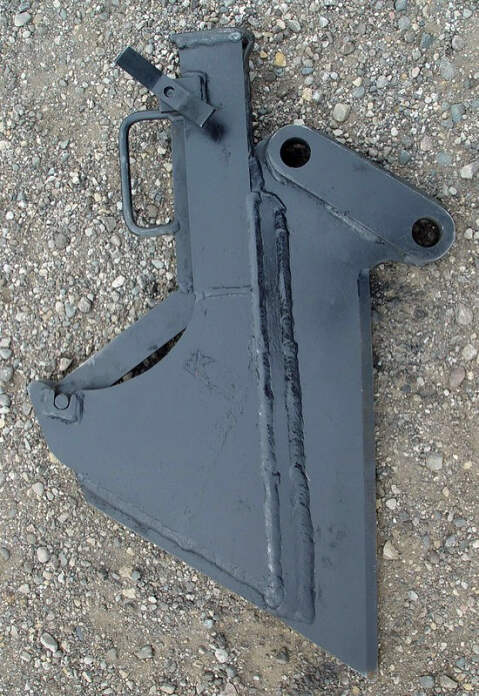

Standard chuted blade

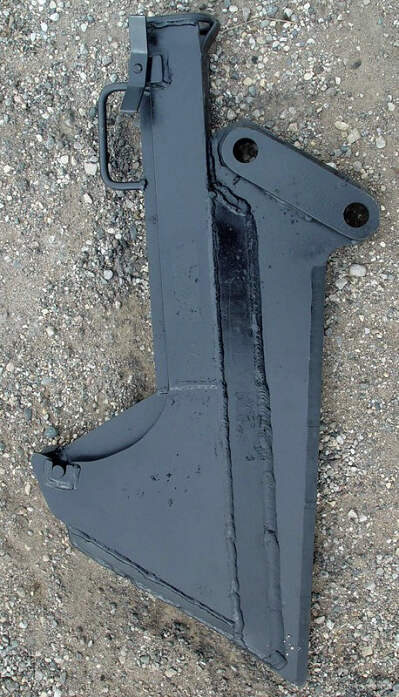

Speed-style chuted blade

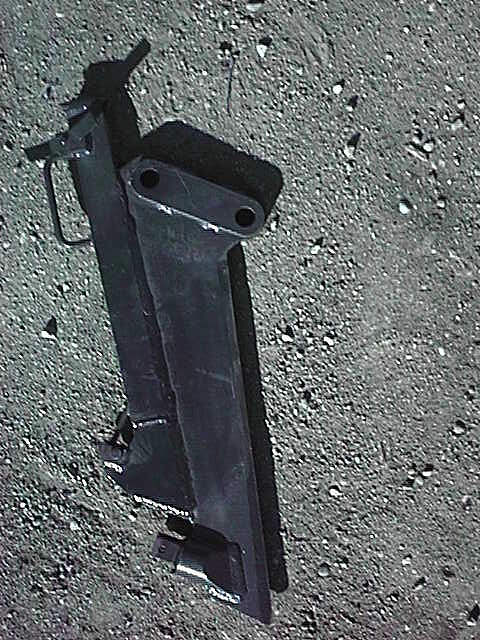

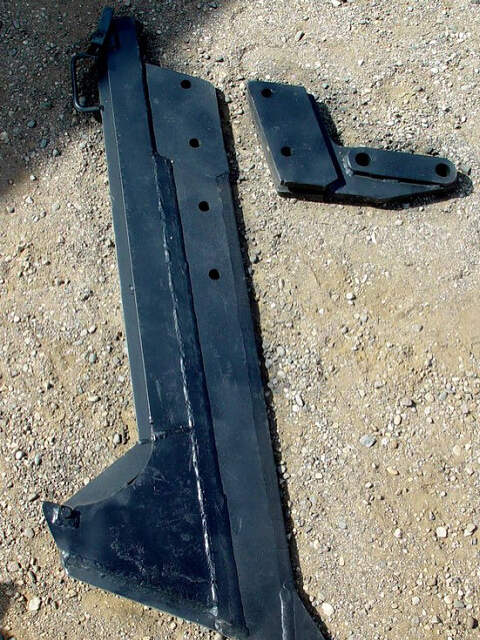

Combo blade, pull and chute combination. Adjustable 350 with adaptor.

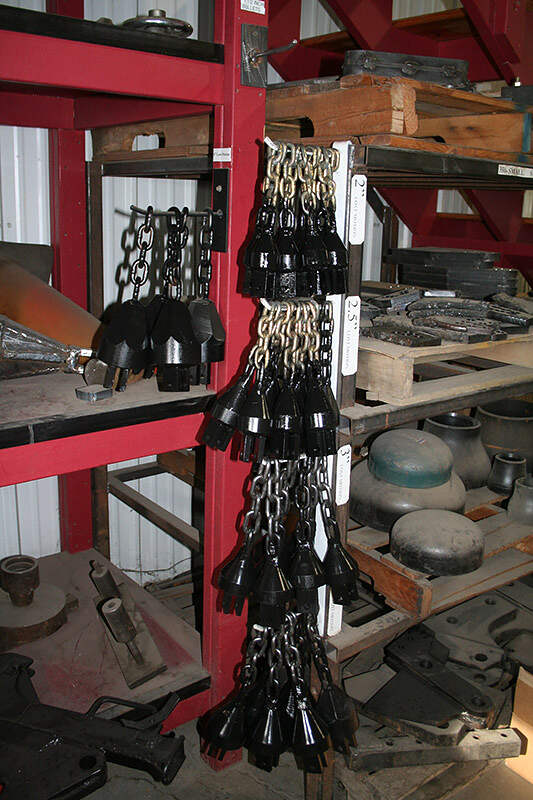

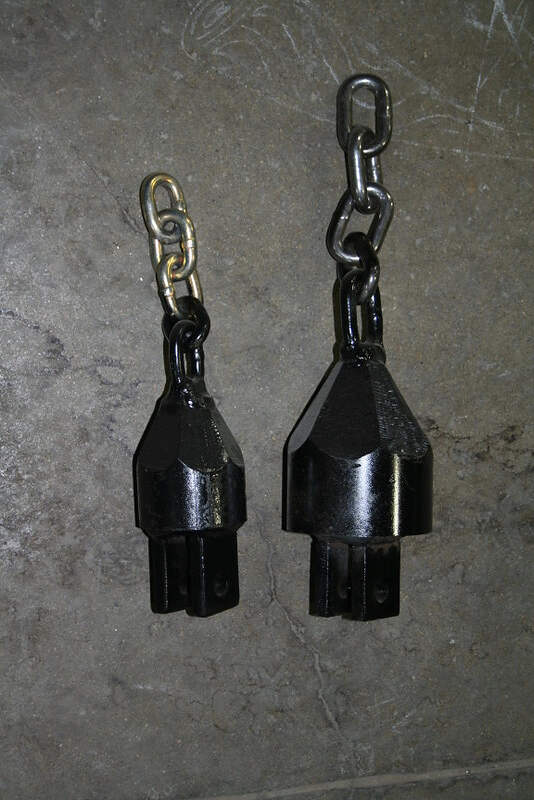

Lost motion bullets can be ordered separately or attached to any of the pull blades.
Sizes – 1 ½”, 2”, 2 ½”, 3”, 3 ½”, 4”, 4 ½”, 5”, 6”, etc.
