SPB 420SX SERIES

PULL BLADES

  • All pull blades feature a solid shaft bullet in your choice of diameter: 1 ½”, 2”, and 2 ½”
  • (Larger, optional sizes available upon request)
  • Blade shank thickness is 5/8”
  • Standard depths are 18”-24”, 24”-30”, and 30”-36”

CHUTED BLADES

  • Blade shank thickness is 5/8”
  • All standard blades feature a closed bottom unless you specify open or partially open bottom

BUG WIRE OR DROP BLADES

  • Standard inside chutes – ¾” and 1”
  • Standard radius is 2.5” and 4.5”
  • Standard cover depths are 18”-24”, 24”-30” and 30”-36”

STANDARD PLOW BLADES

  • Standard inside chutes – ¾”, 1”, 1 ¼”, 1 ½”, 1 ¾”and 2”
  • Standard radius is 7.5”
  • Standard cover depths are 18”-24”, 24”-30”and 30”-36”

LARGER RADIUS PLOW BLADES – cable TV, fiber optics, etc.

  • Standard inside chutes – 1”, 1 ¼”, 1 ½”, 1 ¾”, 2”, 2 ½” and 3”
  • Standard radius is 10” and 12.5”
  • Standard cover depths are 18”-24”, 24”-30” and 30”-
superior blow blades 420sx series blade

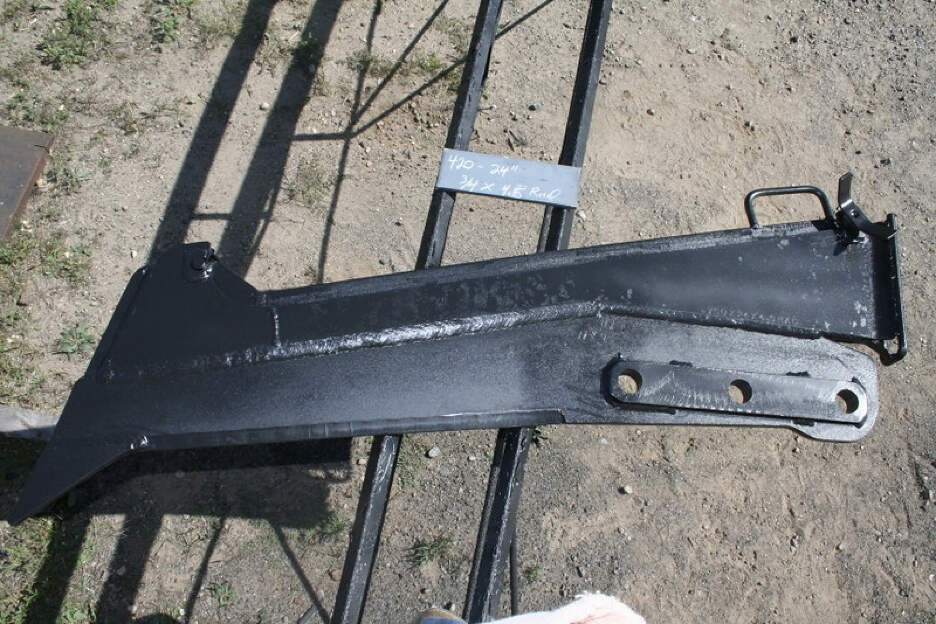

420SX BLADE – ¾” inside chute x 24” cover depth x 4.5” radius
