SPB Case/Astec/Toro Mini, Maxi, DH-4 360 Series

Will fit the Maxi, DH-4, 360, P40 and P60.

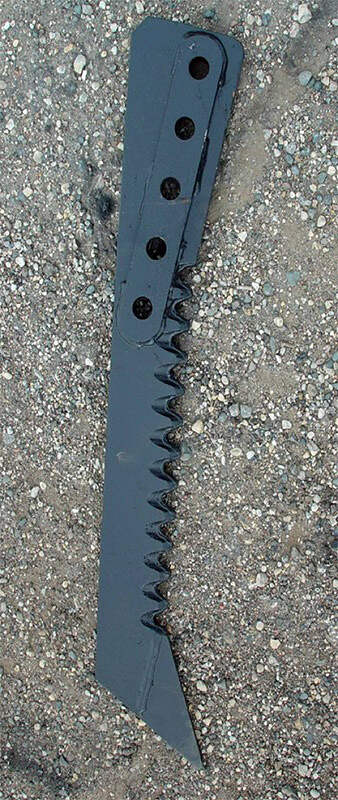

PULL BLADES

• All pull blades feature a solid shaft bullet in your choice of diameter: 1 ½”, 2” and 2 ½”
• Blade shank thickness is 5/8”
• Standard depths are 12”, 15”, 18”, 24”, 30” and 36” (Depth can be ordered as one depth only or adjustable 3-depth with 3” increments, i.e. 12”-15”-18”)

CHUTED BLADES

• Blade shank thickness is 5/8”
• All standard blades feature a closed bottom unless you specify open or partially open bottom.

BUG WIRE OR DROP BLADES

• Standard inside chutes – 5/8”, ¾” and 1”
• Standard radius is 2.5” and 4.5”
• Standard cover depths are 12”, 18”and 24” (Available as single depth or adjustable 3 depths – 3” increments)

STANDARD PULL BLADES

• Standard inside chutes – 5/8”, ¾”, 1”, 1 ¼”, 1 ½”, 1 ¾” and 2”
• Standard radius is 7.5”
• Standard cover depths are 12”, 18”and 24” (Available as single depth or adjustable 3 depths – 3” increments)

LARGER RADIUS PLOW BLADES – cable TV, fiber optics, etc.

• Standard inside chutes – ¾”, 1”, 1 ¼”, 1 ½”, 1 ¾”, 2”and 2 ½”
• Standard radius is 10”, 12.5” and 15”
• Standard cover depths are 12”, 18”and 24” (Available as single depth or adjustable 3 depths – 3” increments)

GAS BLADES – for plastic gas pipe, w/ wire and ribbon tubes

• Standard inside chutes – 1”, 1 ¼”, 1 ½”, 1 ¾”, 2” and 2 ½”
• Standard gas radius
• Standard cover depths are 18”and 24” (Available as single depth or adjustable 3 depths – 3” increments)

•

•
