Will fit the Ditch Witch* RT70, RT80, RT95, H932, H1032 and RT120
PULL BLADES
- All pull blades feature a solid shaft bullet in your choice of diameter: 1 ½, 2”, 2 ½” (Larger, optional sizes available upon request)
- Blade shank thickness is 1 ½”
- Standard depths are 18”, 24”, 30”, 36”, 42”, and 48”
CHUTED BLADES
- Blade shank thickness is 1” on RT70 and RT80, can be 1 ¼” on RT80-RT115 up to 38” cover, and 1 ½” on RT80-RT115 over 38” and on all RT120’s
- All standard blades feature a closed bottom unless you specify open or partially open bottom
BUG WIRE OR DROP BLADES
- Standard inside chutes are ¾” and 1”
- Standard radius is 2.5” and 4.5”
- Standard cover depths are 18”, 24’, 30”, 36”, 42” and 48”
STANDARD PLOW BLADES
- Standard inside chutes are ¾”, 1”, 1 ¼”, 1 ½”, 1 ¾” and 2”
- Standard radius is 7.5”
- Standard cover depths are 24”, 30”, 36”, 42” and 48”
LARGER RADIUS PLOW BLADES – cable TV, fiber optics, etc.
- Standard inside chutes are 1”, 1 ¼”, 1 ½”, 1 ¾”, 2”, 2 ½” and 3”
- Standard radius is 10”, 12.5” and 15”
- Standard cover depths are 24”, 30”, 36”, 42” and 48”
GAS BLADES – for plastic gas pipe, w/wire and ribbon tubes
- Standard inside chutes – 1”, 1 ½”, 2”, 2 ½” and 3”
- Standard gas radius
- Standard cover depths are 24”, 30”, 36”, 42” and 48”
3 PHASE POWER BLADES – for multiple power cables
- Standard inside chutes – 1 ½” x 4 ½”, 1 ¾” x 5 ¼”, 2” x 6”and 2 ½” x 7 ½”
- 3-Phase radius
- Standard cover depths are 30”, 36”, 42” and 48”

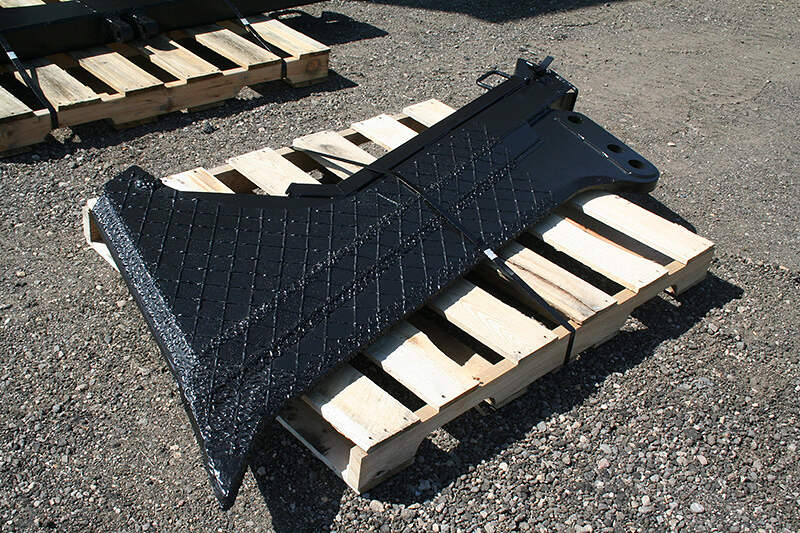

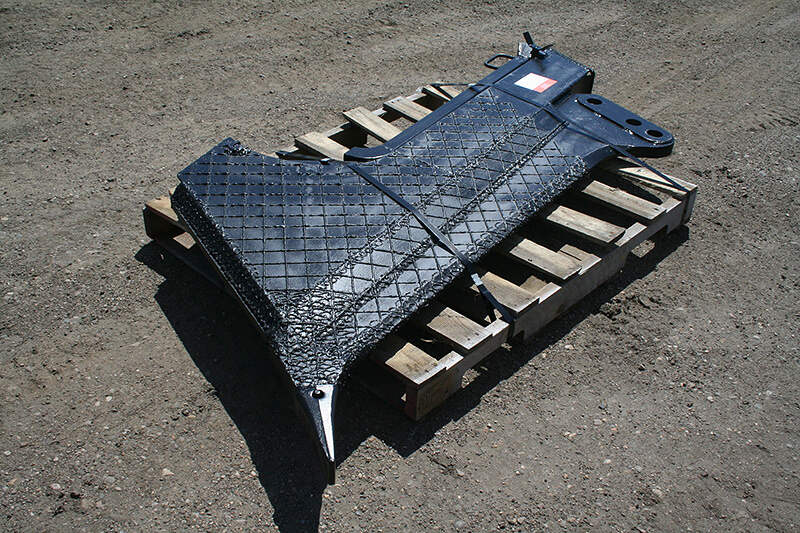

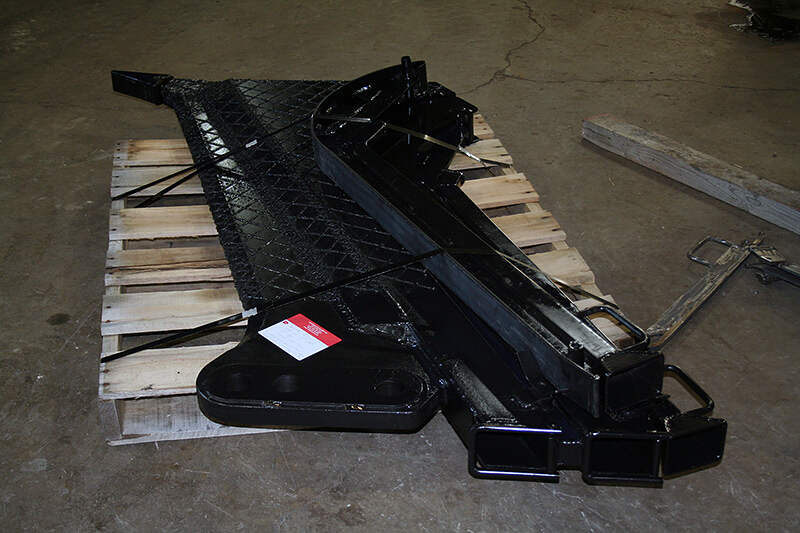

crosshatch hard face with standard toe and ribbon tube piggyback chute with gates and ribbon tubes, crosshatch hard face and replaceable toe crosshatch hard face, replaceable toe, extra deep chute for multiple products with ribbon tube
