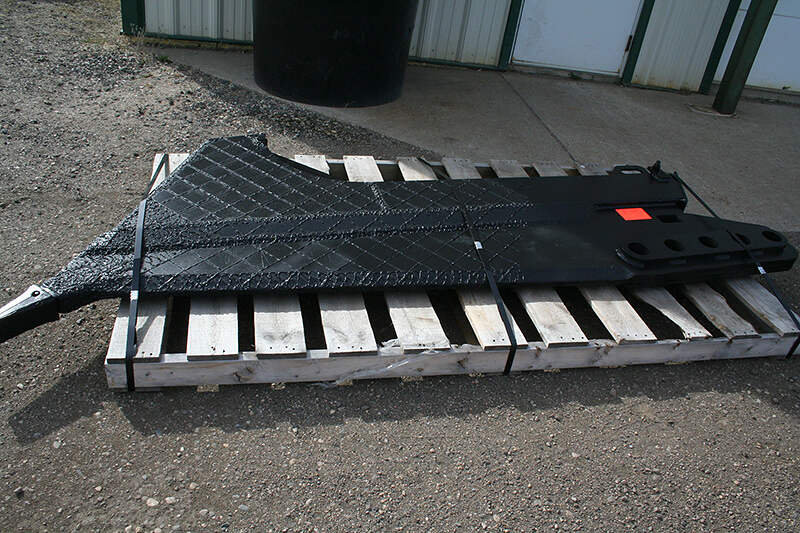

All 150 blades are depth adjustable from 36”-42”-48” cover depth. Two-piece hinged blades are also available, but not listed. Please call for pricing. Blade shows crosshatch hard facing and replaceable toe.
PULL BLADES
- All pull blades feature a solid shaft bullet in your choice of diameter: 3”, 4”, and 5”
- All 150 blades are 2” shank thickness; All 185 blades are 2 ½” shank thickness
- Standard depths are 48”
CHUTED BLADES
- All 150 blades are 2” shank thickness; All 185 blades are 2 ½” shank thickness
- All standard blades feature a closed bottom unless you specify open or partially open bottom
LARGER RADIUS PLOW BLADES – cable TV, fiber optics, etc.
- Standard inside chutes – 1 ½”, 2”, 2 ½”, 3”and 3 ½”
- Standard radius is 12.5” and 15”
- Standard cover depths are 48”
GAS BLADES – for plastic gas pipe, w/wire and ribbon tubes
- Standard inside chutes – 2”, 2 ½”, 3” and 3 ½”
- Standard gas radius
- Standard cover depths are 48”
3 PHASE POWER BLADES – for multiple power cables
- Standard inside chutes – 1 ¾” x 5 ¼”, 2” x 6”and 2 ½” x 7 ½”
- 3 phase radius
- Standard cover depths are 48”
